Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc

Product Categories
Qingdao Xincheng Information Technology Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc

MOQ : 3 sets

Price : CN¥86,256.82/sets 3-5 sets

range of spindle speed(r.p.m) : 1 - 24000 rpm

positioning accuracy (mm) : 0.05 mm

number of axes : 3

no. of spindles : ATC

working table size(mm) : 1300×2500

machine type : CNC Router

travel (x axis)(mm) : 1300 mm

travel (y axis)(mm) : 2500 mm

repeatability (x/y/z) (mm) : 0.05 mm

spindle motor power(kw) : 9kw

cnc or not : CNC

place of origin : Shandong, China

brand name : Superstar

voltage : 380V 50/60HZ

dimension(l*w*h) : 3600*2200*1850mm

power (kw) : 9

weight (kg) : 2300

control system brand : Syntec

warranty : 1 Year

key selling points : Easy to Operate

machinery test report : Provided

video outgoing-inspection : Provided

core components : motor, Pump

control system : Taiwan Syntec controller system

working size : 1300*2500*200mm

spindle power : 9.0KW atc air cooling spindle

Spindle speed : 18000rpm/min

machine table : vacuum table

Inverter : 11kw inverter

transmission : helical rack pinion

driving system : Japan servo driver and motor

guiding system : Taiwan 20mm square guide rail

application : mdf, wood engraving, aluminium cutting

Condition : New

Warranty of core components : 1 Year

Applicable Industries : Manufacturing Plant, Home Use, Construction works , Advertising Company, Furniture factory

Place of Origin : Shandong, China

Brand Name : GTS

Contact Now

40% Discount! Atc Cnc Router 1325 1530 2040 2030 3d Atc Woodworking Cnc Router Machine Cnc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Specialized in woodworking machines such as edge banding machine, sliding table saw, drilling machine and so on. We have professional technology, full range of testing lines and pipelining. We are looking forward to establishing long term cooperation relationship with you and offer you high quality products and perfect service.
Product Description
40% discount! atc cnc router 1325 1530 2040 2030 3d atc woodworking cnc router machine cnc

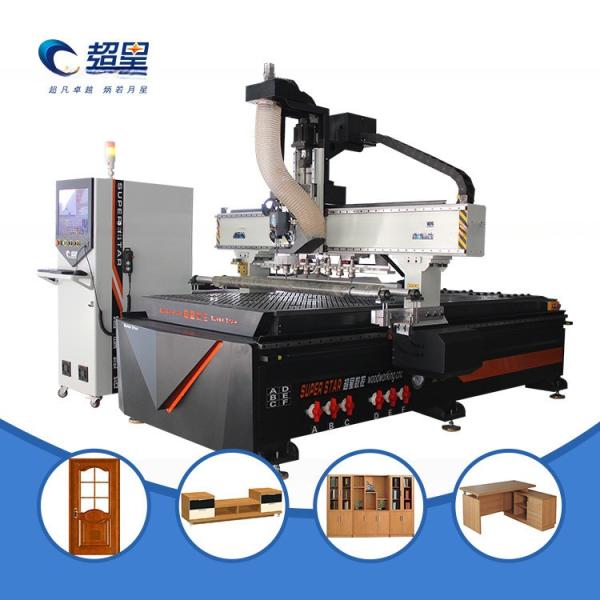

Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
The advantage of this woodworking engraving machine is that it is suitable for the processing of diversified and complex products or diversified processing, and has a wide range of uses.

Woodworking Machine Advantages:

1. Introduce a new generation of Kandy control system, intelligent processing cross-border protection function.
2. The whole bed is welded and tempered by steel structure, which has strong rigidity and no distortion.
3. Using high-power tool-changing spindle, the cutting force is high.
4. Large independent cabinet, separate keyboard operation, simple and convenient, easy to learn.
Superstar Brand CNC Router, providing various size and models. With 20years experience , we accpet ODM and OEM according to requirements. Besides, we can suggest the suitable woodworking production line based on customer's factory and personnel situation.
Model
CX1325 ATC cnc router machine(Linear-type atc )
X axis working area
1300mm(Do customized 2000mm)
Y axis working area
2500mm(Do customized 3000mm)
Z axis working area
200mm
Max working speed
45m/min
Max engraving speed
25m/min
Repositioning accuracy
±0.05mm
Working voltage
380V 50/60HZ 3phase
Spindle
9kw HQD China air cooling spindle
Spindle speed
0-18000rpm/min
Inverter
11kw XFT inverter
Tools pcs
12 pcs for linear-type auto change
Working table
Vacuum table
Vacuum pump
7.5kw air vacuum pump
Transmission
X/Y helical gears,Z axis ball screw
Guide
Y axis with 30mm and XZ axis with 25mm Taiwan LNC2200 controller system
Working motor&driver
China 1.5kw servo motor&servo driver
Reducer
Japan shimpo reducer
Controller system
Taiwan LNC2200 controller system
PS: All the working area and specifications can be customized according to your requests.

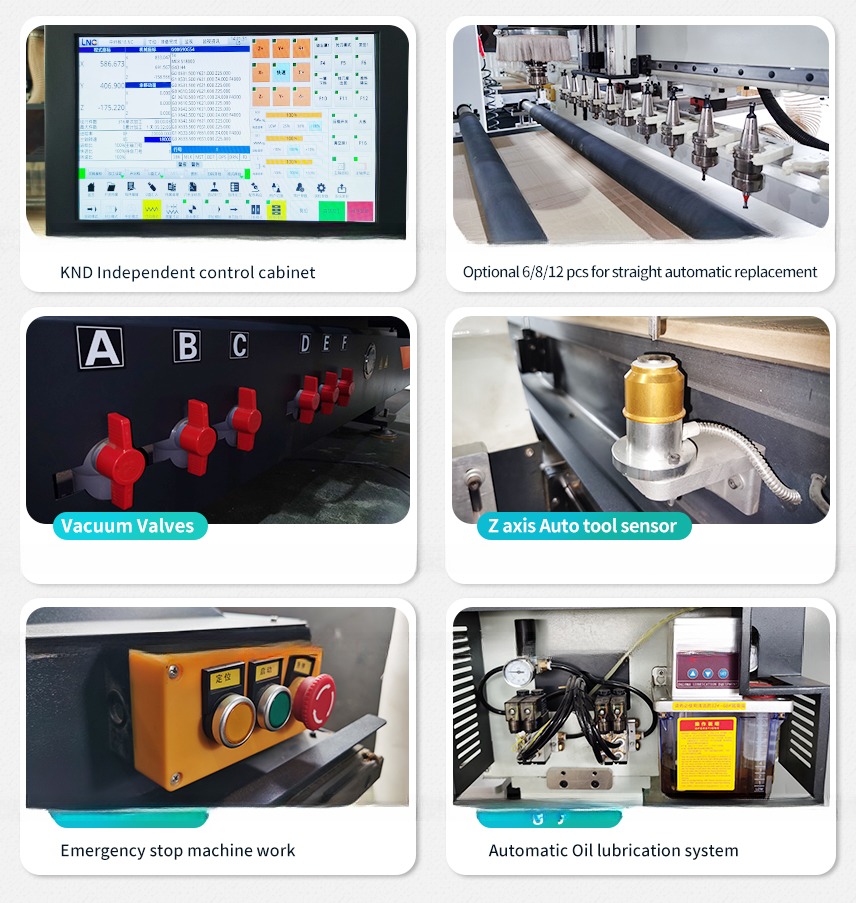

Detailed Images
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Application:

Woodworking Machine Application:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on. 2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making. 3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Why Choose Us
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Woodworking Panel Furniture Solution 1325 1530 2040 2030 3D Atc Cnc Router Atc
Please Feel Free To Send Us Inquiry Or Message To Know More About The Shipping Response Will Be Within 1 Minutes During Working Time, And Within 6 Hours During Off Duty Time.
FAQ
Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
